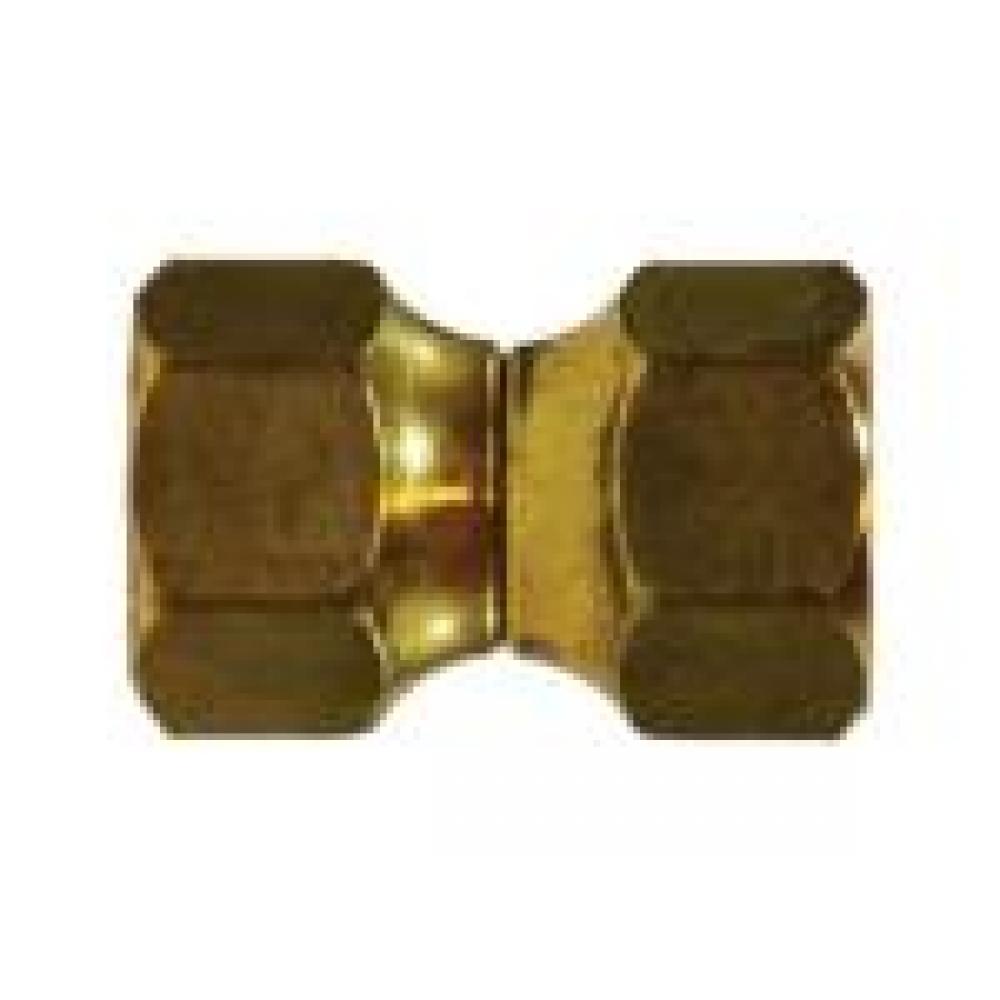

UNION SWVL 5/16IN SAE 45 DEG FFL 5/16IN
Call For Price
- Part Number: 10482
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (6)
Product Overview
Info & Guides
MIDLAND INDUSTRIES Swivel Union, Connection Size 1: 5/16 in, Connection Type 1: SAE 45 deg Female Flared, Connection Size 2: 5/16 in, Connection Type 2: SAE 45 deg Female Flared, Forged Brass, 1/2-20 Thread, 0.68 in Hex, For Use With: Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared, 1.24 in L, 1200 psi, -65 to 250 deg F, Additional Information: 0.032 in Tube Wall Thickness, 0.06 lb Weight
Specifications
Details
Industrial Category:
Plumbing
Industrial Subcategory:
Tube Fittings
Industrial Subtype:
Flared Tube Fittings
Additional Information 01:
0.032 in Tube Wall Thickness
Additional Information 02:
0.06 lb Weight
APPLICATION:
For LP and natural gas, flammable liquids, instrumentation, refrigeration, power steering, hydraulic and pneumatic systems
Brand Name:
MIDLAND INDUSTRIES
Connection Size 1:
5/16
Connection Type:
Female SAE Flared|Female SAE Flared
Connection Type 1:
SAE 45 deg Female Flared
Connection Type 2:
SAE 45 deg Female Flared
Dimensions:
1.24 in L
DOMESTIC ERP PRODUCT INDICATOR:
P21D
Fitting Type:
Union
For Use With:
Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared
Hex Size (in):
0.68
Item Volume (Cu-In):
1.27
Material:
Brass
Material Construction:
Forged Brass
Pressure Rating:
1200
Shape:
Straight/Connector
STANDARD_APPROVALS:
ASA|ASME|MS (Military Standards)|SAE
Thread Size:
1/2-20
Warranty:
1 Year
