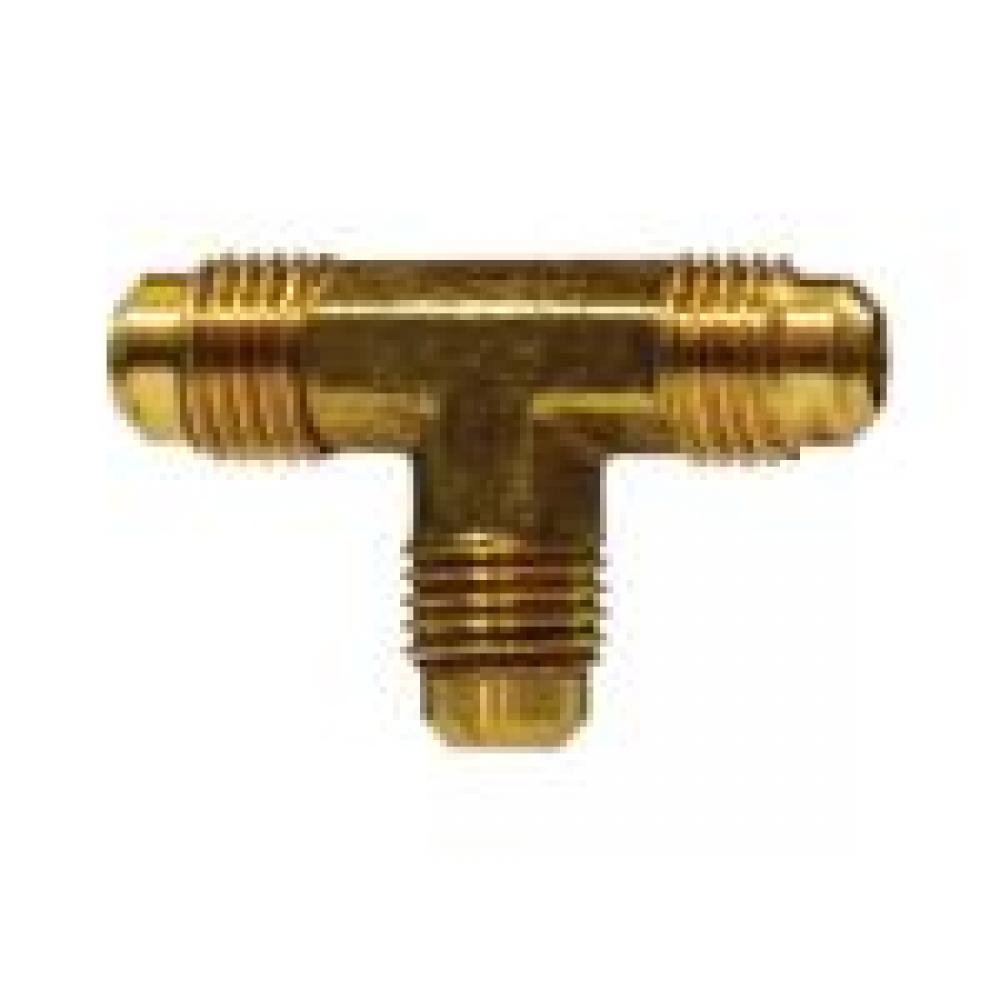

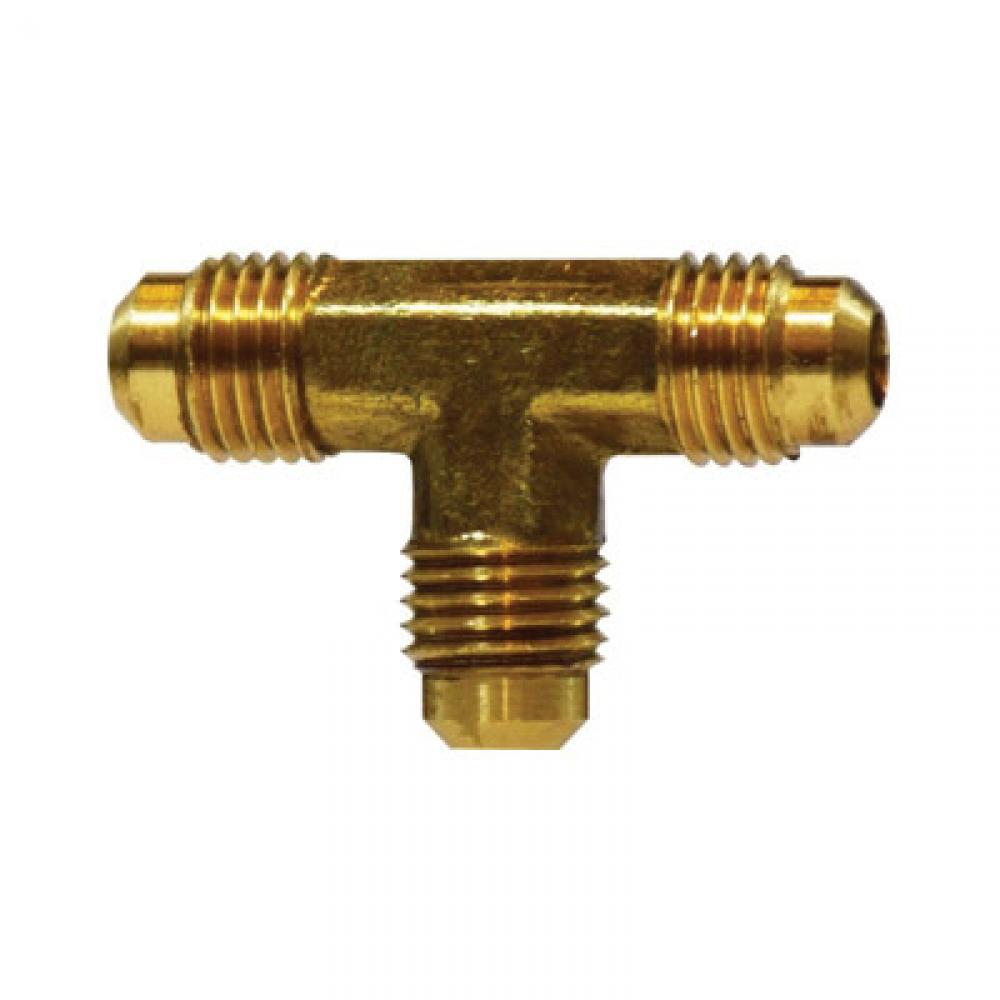

TEE UN 3/8IN SAE 45 DEG MFLRD 3/8IN BRS
Call For Price
- Part Number: 04044-06P65
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
AMC® Union Tee, Connection Size 1: 3/8 in, Connection Type 1: SAE 45 deg Male Flared, Connection Size 2: 3/8 in, Connection Type 2: SAE 45 deg Male Flared, Connection Size 3: 3/8 in, Connection Type 3: SAE 45 deg Male Flared, Forged Brass, 5/8-18 Thread, For Use With: Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared, 2 in L, 1000 psi, -65 to 250 deg F, Additional Information: 1 in Branch End to Center, 0.032 in Tube Wall Thickness, 0.44 in Body Size, 0.120 lb Weight
Specifications
Details
Industrial Category:
Plumbing
Industrial Subcategory:
Pipe Fittings and Couplings
Industrial Subtype:
Brass Pipe Fittings
Additional Information 01:
1 in Branch End to Center
Additional Information 02:
0.032 in Tube Wall Thickness
Additional Information 03:
0.44 in Body Size
Additional Information 04:
0.120 lb Weight
APPLICATION:
For LP and natural gas, flammable liquids, instrumentation, refrigeration, power steering, hydraulic and pneumatic systems
ASSEMBLY PRODUCT INDICATOR:
Yes
Brand Name:
AMC®
Connection Size 1:
3/8
Connection Size 3:
3/8
Connection Type:
Male SAE Flared|Male SAE Flared|Male SAE Flared
Connection Type 1:
SAE 45 deg Male Flared
Connection Type 2:
SAE 45 deg Male Flared
Connection Type 3:
SAE 45 deg Male Flared
Dimensions:
2 in L
DOMESTIC ERP PRODUCT INDICATOR:
P21D
Fitting Type:
Tee
For Use With:
Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared
Material:
Brass
Material Construction:
Forged Brass
Pressure Rating:
1000
STANDARD_APPROVALS:
ASA|ASME|MS (Military Standards)|SAE
Thread Size:
5/8-18
Warranty:
1 Year
