Vertical Toggle With Open Arm And Horizontal Base Plate
Call For Price
- Part Number: STC-VH50
- UPC: 00788502202343
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (13)
Product Overview
Info & Guides
Auto-Adjusts to variations in work piece height from 0-50 mm (approx 1 9/16 IN) Holding capacity up to 700 lbs (nominal) Integrated pressure screw allows clamping force adjustment from 25-550 lbs Large ergonomic handle Base construction is optimized for 1/4 IN (M6) fasteners
Specifications
Details
Industrial Category:
Hand Tools
Industrial Subcategory:
Clamps
Industrial Subtype:
Vertical Handle Toggle Clamps
Approx. Weight:
0.94 lbs
Automatic Adjust:
1 3/8"
Case Quantity:
6
Clamping Capacity:
1 9/16"
Country Of Origin:
Germany
Fastener:
1/4" or M6
Holding Capacity:
700 lbs
Includes:
Large Ergonomic Handle, Adjustment Screw, Adaptable Base Plate
Item Ship Weight:
0.94
Item Weight:
0.94
Nominal Clamping Force Range:
25 - 550 lbs*
Order Minimum:
1
Ship Carton Height:
6.38
Ship Carton Length:
4.57
Ship Carton Width:
2.36
Spec 7:
450
Type:
Vertical
UNSPSC:
27112132
Other Details
A removable non-marring plastic cap is included on the steel pressure pads.
Adjustable Clamping Force - the integrated clamping force adjustment screw can be used to create an actually applied clamping force from 25 to 250 lbs. (max holding capacity 450 lbs.)
No more time-consuming manual adjustment of the spindle height to maintain safe and correct clamping force
One BESSEY Auto-Adjust Toggle Clamp can replace a range of competitive clamps
The BESSEY Auto-Adjust Toggle Clamp automatically adjusts to variations in work piece dimensions while maintaining constant clamping force

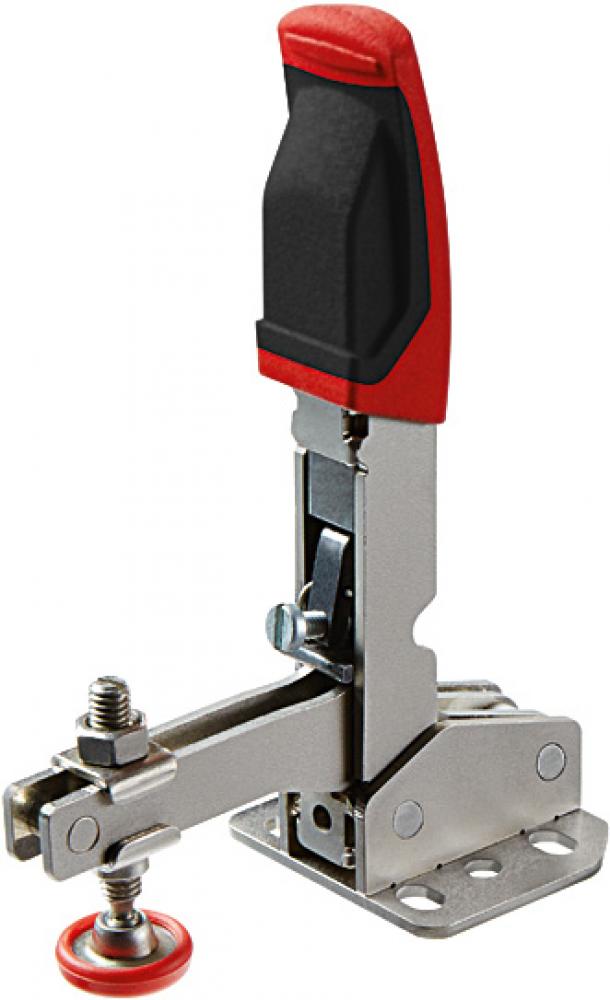

Vertical toggle with open arm and horizontal base plate
