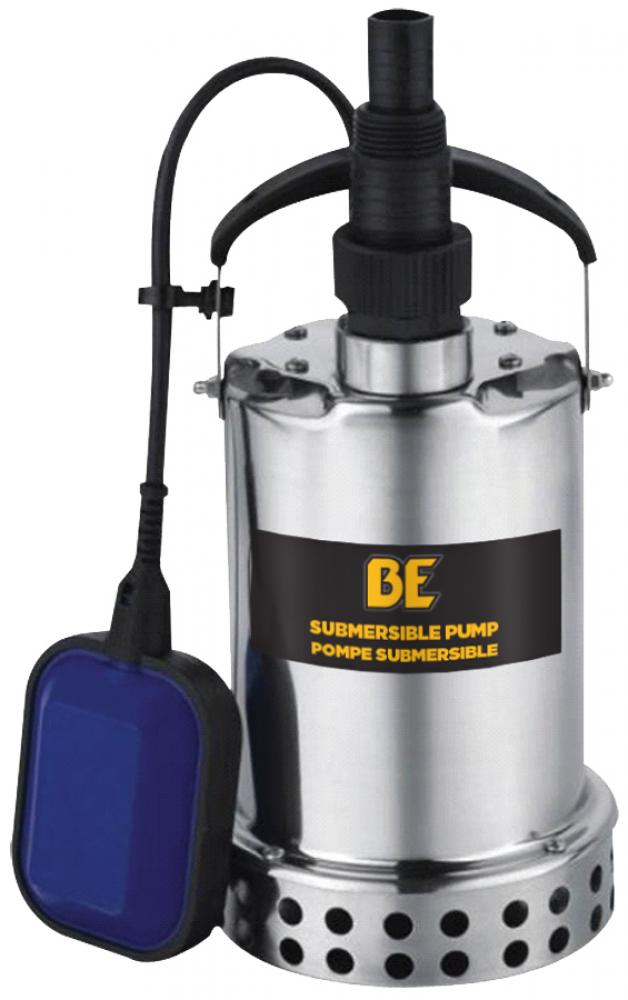

5/8 HP Submersible Water Pump
Call For Price
- Part Number: SP-750TD
- UPC: 00777897169096
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
5/8 HP Electric motor uses copper windings to make it highly efficient drawing only 4.56 amps.
Specifications
Details
Industrial Category:
Pumps
Industrial Subcategory:
Sump, Effluent and Sewage Pumps
Industrial Subtype:
Submersible Sewage Pumps
Submersible Sump Pumps
Box L x W x H:
9" x 7" x 13"
Box WEIGHT:
15
Bullet 1:
Submersible pump with 1.5#34; top discharge and tethered float switch
Bullet 2:
3/4 hp, 115v, 750 watt motor capable of 2420 gph and 28#39; max delivery height
Bullet 3:
26#39; max submersible depth and 2 mm max solid handling
Bullet 4:
This model has a stainless steel body and copper windings
Certification:
c UL us listed
Item Height (inches):
15
Item Length (inches):
8
Item Weight (lbs):
15
Item Width (inches):
9
Motor AMP DRAW::
7
Motor CORD LENGTH:
26'
Motor Housing Material:
stainless steel
Motor HP::
5/8
Motor VOLTAGE::
115V
Motor Windings material:
Copper
Performance Flow @ 0':
2905
Performance Flow @ 10':
2750
Performance Flow @ 20':
1800
Performance Max depth ft:
26
Performance Max Solid Capacity:
5mm / 0.2"
Performance Max Total Lift:
28
Performance On/Off Switch typle:
tethered float
Performance Plug Type:
NEMA 5-15P
Port Specs location::
top
Port Specs Orientation::
Verticle
Port Specs Size:
1.25"
Port Specs Thread Type::
NPT
Spec 1:
Motor: 0.75 HP
Spec 10:
Cord Length: 25#39;
Spec 11:
Switch: Tethered Float
Spec 2:
Voltage: 120
Spec 3:
Wattage: 750
Spec 4:
Capacity: 2420 GPH
Spec 5:
Outlet: 1.5#34; Top Discharge
Spec 6:
Max Delivery Height: 28#39;
Spec 7:
Max Submersible Depth: 26#39;
Spec 8:
Max Solids: 2 mm
Spec 9:
Housing: Stainless Steel
Unit L x W x H:
6" x 6" x 10"
Unit NET WEIGHT::
14
UPC::
777897169096
Warranty:
1 year
Other Details
Compact submersible pump that will drain standing water from any environments such as flooded basements and swimming pools.
Continuous duty motor can be left running for extended periods of time. The float will switch it off when the water level drops too low.
Draws water from the bottom of the pump to maximize its removal.
Power cord is extra long measuring 26 feet allowing the pump to be submersed to its maximum depth without the need for extra cords.
Stainless steel shell resists impacts and corrosion providing long life.
