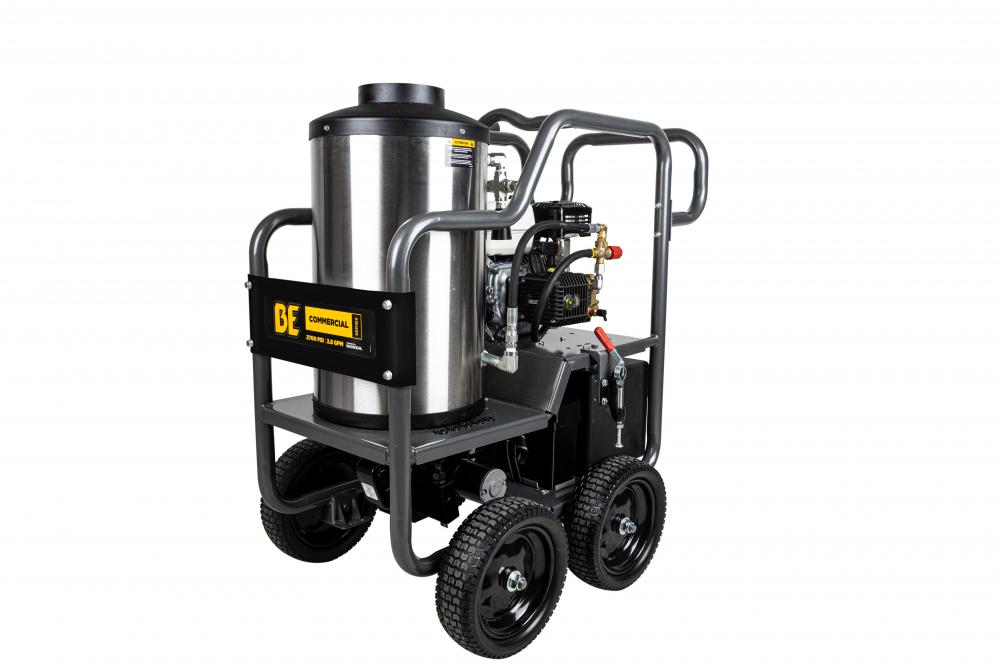

2,700 PSI - 2.8 GPM HOT WATER PRESSURE WASHER WITH HONDA GX200 ENGINE AND GENERAL TRIPLEX PUMP
Call For Price
- Part Number: HW2765HG
- UPC: 00777897324859
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Commercial grade accessories included are a 50 foot high-pressure hose, spray gun wand assembly, and five spray nozzles.
Specifications
Details
Industrial Category:
Sports and Outdoor Equipment
Industrial Subcategory:
Pressure Washers and Accessories
Industrial Subtype:
Gasoline Pressure Washer
ACCESSORIES FITTINGS::
v
ACCESSORIES GUN WAND::
36" Insulated Gun Wand
ACCESSORIES HOSE TYPE::
50' Double Steel Braided
ACCESSORIES NOZZLE PART NUMBER::
035 orifice size; 85.210.035BEP (doesn't include 25°)
ACCESSORIES NOZZLES::
0°, 15°, 25°, 40° And Soaper
Box HEIGHT::
48
Box L x W x H:
37" x 29" x 48"
Box LENGTH::
37
Box WEIGHT:
480
Box WIDTH::
29
Bullet 1:
Powered by a Honda GX200 engine for reliable performance
Bullet 2:
Commercial grade General triplex direct drive pump includes preset brass external unloader valve, forged brass manifold, low pressure detergent injector, and thermal relief valve for safety
Bullet 3:
12V DC oil-fired Beckett burner with low voltage inhibitor, prevents burner from starting up if battery voltage has dropped. Adjustable thermostat up to 200°F.
Bullet 4:
Stainless steel coil skin provides extra durability and is corrosion resistant
Bullet 5:
Reinforced powder coated steel 15-inch tube frame protects the engine and pump. Includes a convenient wand holder, built-in truck mounting brackets and flat-free tires for rugged terrains
Bullet 6:
Wand Assembly includes 36-inch lance and high pressure 5,000 PSI insulated spray gun
BURNER BTU PER HOUR:
300,000
BURNER Coil Tube Length:
80’ LENGTH OF TUBING
BURNER Fuel Capacity:
22.7 L / 6 Gal
BURNER Fuel Type:
DIESEL
BURNER Heating Coil:
1/2” COLD ROLLED STEEL
BURNER IGNITER::
12V Wayne Burner
BURNER Max Temp:
89°C/193°F
BURNER THERMOSTAT:
ON/OFF AND ADJUSTABLE
Drive System:
Direct
Engine AUTO SHUT DOWN:
AUTOMATIC LOW OIL SHUTDOWN
Engine CC::
196CC
Engine ELECTRIC START:
RECOIL
ENGINE Extra:
ENGINE OIL DRAIN HOSE
ENGINE FUEL TANK CAPACITY::
3.1 L / 0.82 US Gal
Engine FUEL TYPE::
86 OCTANE, UP TO 10% ETHANOL
Engine MODEL::
HONDA GX200
Engine OIL TYPE::
SAE 10W30
Engine TYPE::
AIR COOLED, 4-STROKE OHV
Frame MATERIALS::
Powder Coated Steel
FRAME TRUCK MOUNT READY:
TRUCK MOUNT READY
Frame WHEELS::
12" FLAT FREE TIRES
GPM:
2.8
Included Products/Items:
50#39; Steel Braid Hose, 36#34; Gun Wand Assembly, 4 Nozzles
Item Height (inches):
50
Item Length (inches):
47
Item Weight (lbs):
400
Item Width (inches):
31
PSI:
2,700
Pump MODEL::
GENERAL TP2530J34
Pump OIL TYPE::
30W NON-DETERGENT
Pump SOAP SYSTEM::
Adjustable Injector
PUMP THERMAL VALVE::
THERMAL VALVE
Pump TYPE::
TRIPLEX
Spec 1:
PSI: 2700
Spec 10:
Hose: 50#39; x 3/8#34; Steel Braid
Spec 11:
Frame: Powder Coated Steel
Spec 2:
GPM: 2.8
Spec 3:
Engine Model: Honda GX200
Spec 4:
Engine CC: 200
Spec 5:
Fuel Tank Capacity: 3.1L
Spec 6:
Pump Model: General Pump TP2530J34
Spec 7:
Pump Type: Triplex Brass
Spec 8:
Unloader: External
Spec 9:
Connections: Quick Connect
Unit L x W x H:
40" x 28" x 42"
Unit NET WEIGHT::
430
UNSPSC Number:
47121805
UPC::
777987342859
Warranty ACCESSORIES::
90 DAYS
Warranty ENGINE::
3 YEARS
Warranty FRAME::
LIFETIME
WARRANTY HEAT COIL::
3 YEARS
Warranty PUMP::
5 YEARS
Other Details
A lift point is built into the frame to allow the use of a crane to lift it onto a truck or trailer.
Commercial grade General triplex pump featuring die-cast body, forged brass manifold, one-piece plungers, thermal release valve and improved heat dissipation.
Commercial Honda engine with excellent weight to power ratio. Designed to be used all day, everyday.
Direct drive system connects the engine to the pump for a compact and efficient power transfer.
External unloader provides superior cooling and versatility to further enhance pump life.
Frame includes mounting brackets for quick installation onto trucks or trailers by removing the wheels.
Heating coil is ignited by a 12v Wayne burner that is fueled with diesel. Includes AGM deep cycle battery.
Powder coated steel frame with four 13” flat free tires for stability and to handle rough terrain. Roll cage design protects the components while allowing easy access to use or maintain.
The burner can be turned off and controlled with the adjustable thermostat that can be set up to 89°/193°F.
