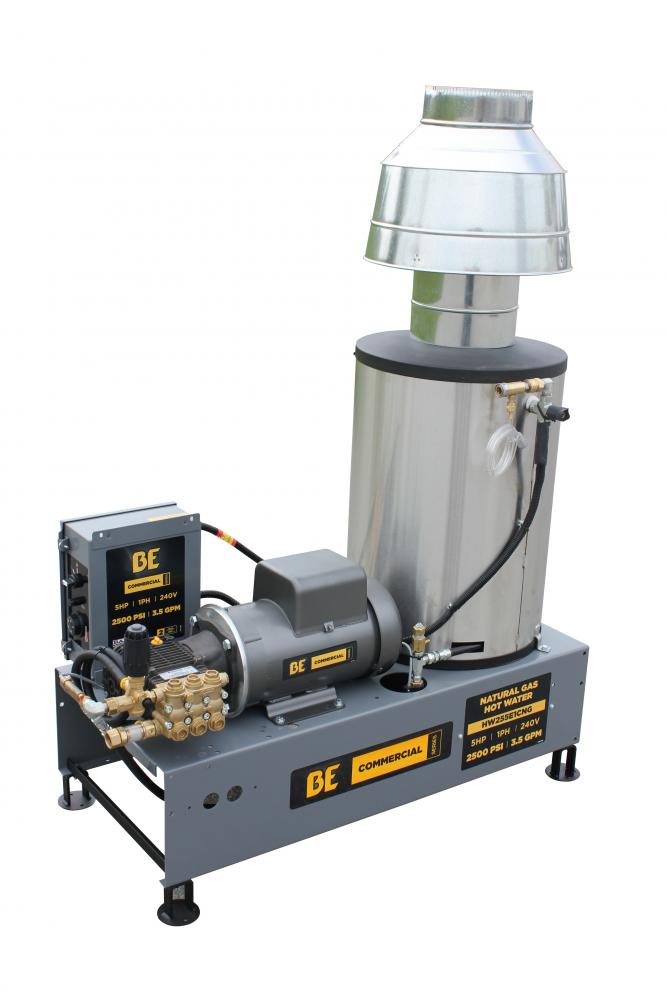

2,500 PSI - 3.5 GPM HOT WATER PRESSURE WASHER WITH 5.0 HP BALDOR MOTOR AND AR TRIPLEX PUMP
Call For Price
- Part Number: HW255E1CNG
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Heating coil has a stainless steel wrap protecting the heavy duty 1/2” schedule 80 carbon steel cold rolled pipe.
Specifications
Details
Industrial Category:
Sports and Outdoor Equipment
Industrial Subcategory:
Pressure Washers and Accessories
Industrial Subtype:
Electric Pressure Washers
ACCESSORIES FITTINGS::
QUICK CONNECT
ACCESSORIES GUN WAND::
36" Insulated
ACCESSORIES HOSE TYPE::
50' Double Steel Braided
ACCESSORIES NOZZLES::
85.210.045BEP (doesn't include 25°)
Box L x W x H:
43" x 20" x 42"
Box WEIGHT:
665
BURNER Coil Tube Length:
96’ LENGTH OF TUBING
BURNER Fuel Type:
Natural Gas Fired
BURNER Heating Coil:
1/2” COLD ROLLED STEEL
BURNER Max Temp:
93°C/200°F
BURNER THERMOSTAT:
ON/OFF AND ADJUSTABLE
Frame MATERIALS::
Powder Coated Steel
GPM:
3.5
Motor AMP DRAW::
23
Motor AUTO START/STOP:
Yes
Motor HP::
5
Motor MODEL::
BALDOR
Motor PHASE:
Single
Motor VOLTAGE::
240
PSI:
2,500
Pump OIL TYPE::
30W NON-DETERGENT
Pump SOAP SYSTEM::
Adjustable Injector
Pump TYPE::
TRIPLEX
PUMP::
AR RRA35G30E
Unit L x W x H:
42 x 20 x 41
Unit NET WEIGHT::
589
Unloader TYPE::
External W/36" Hose
UPC::
777897325706
Warranty ACCESSORIES::
90 DAYS
Warranty ENGINE::
2 YEARS
Warranty FRAME::
LIFETIME
WARRANTY HEAT COIL::
3 YEARS
Warranty PUMP::
5 YEARS
Other Details
5.0 HP, single phase Baldor motor delivers energy efficiency and reliability suited for commercial applications.
Auto start/stop system activates the pump when the trigger of the spray wand is squeezed.
Commercial grade AR triplex pump featuring reinforced body, forged brass manifold, solid ceramic plungers, stainless steel check valves and thermal release valve.
External unloader provides superior cooling and versatility to further enhance pump life.
Industrial grade accessories included are a 50 foot high-pressure hose, spray gun wand assembly, and five spray nozzles.
Plumbs into natural gas system using a Robertshaw valve. Ideal to be used for indoor wash bays and garages.
The burner can be turned off and controlled with the adjustable thermostat that can be set up to 93°/200°F.
