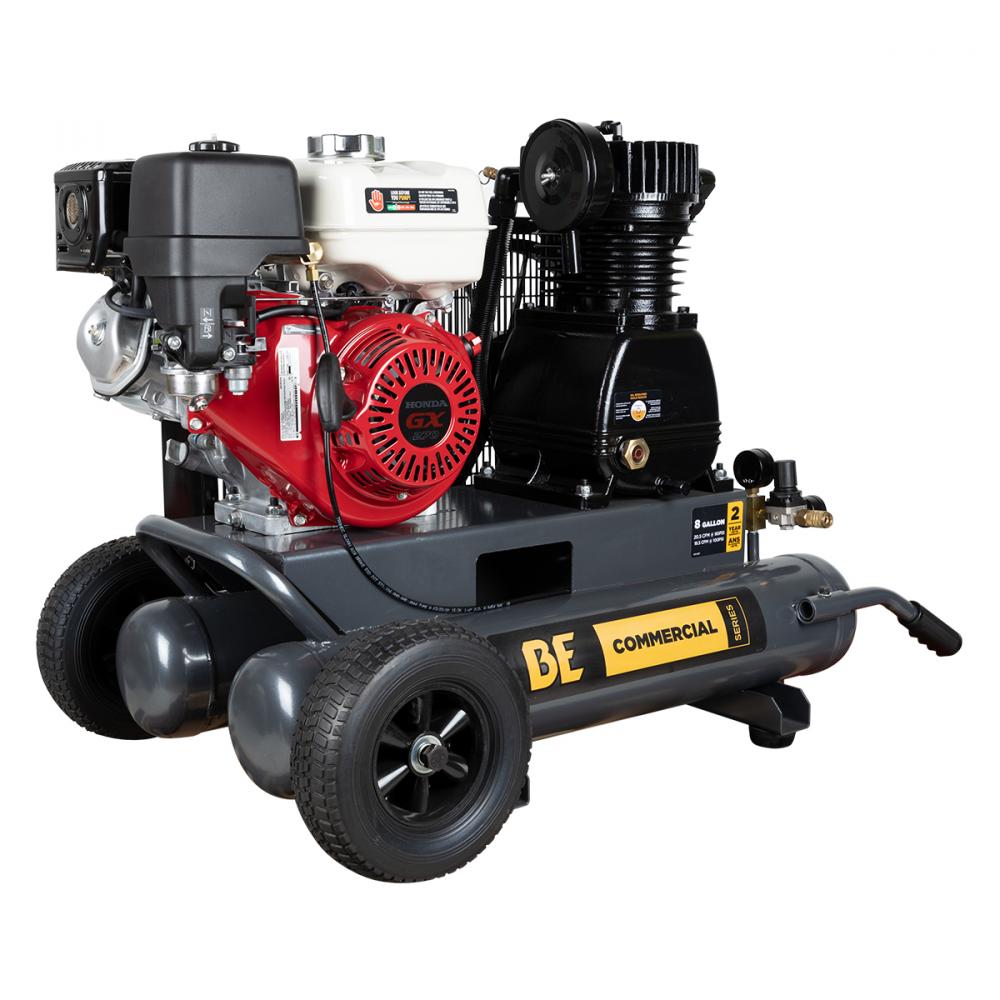

17.7 CFM @ 175 PSI - 8 GALLON, PORTABLE GAS AIR COMPRESSOR WITH HONDA GX270 ENGINE
Call For Price
- Part Number: AC908HB2
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Portable gas engine air compressor that uses the reliable Honda GX 270 engine and is mounted on a wheel barrow 8-gallon tank. Two-stage, splash lubricated oiled pump with cast iron cylinders and aluminum body for optimum durability and performance. The engine has automatic low oil shutdown, as well as an auto idle feature when the tank gets to pressure to keep the pump running cool and to minimize fuel consumption. Extremely popular air compressor for construction crews.
Specifications
Details
Industrial Category:
Pneumatics
Industrial Subcategory:
Air Compressors and Vacuum Pumps
Industrial Subtype:
Portable Gas Engine Air Compressors
Box L x W x H:
42" x 28" x 36"
Box WEIGHT:
280
Couplers:
1
Drive System:
Belt
Engine AUTO SHUT DOWN:
AUTOMATIC LOW OIL SHUTDOWN
Engine CC::
270CC
Engine ELECTRIC START:
RECOIL
ENGINE FUEL TANK CAPACITY::
5.3L (1.4 Gal)
Engine FUEL TYPE::
86 OCTANE, UP TO 10% ETHANOL
Engine MODEL::
HONDA GX270
Engine OIL TYPE::
SAE 10W30
Engine TYPE::
AIR COOLED, 4-STROKE OHV
Frame MATERIALS::
Powder Coated Steel
Frame Tank Size:
(4 x 4 Gallons) 8
Frame WHEELS::
12" flat free
Pump Air Filter Port:
3/4" NPT
Pump CFM @ PSI:
17.7 @ 175PSI
Pump Cut in/Cut out:
140-175
Pump Max PSI:
175
Pump OIL TYPE::
30W NON-DETERGENT
Pump RPM:
1080
Pump Stage:
Two
Pump TYPE::
Reciprocating
Unit L x W x H:
45" x 26" x 29"
Unit NET WEIGHT::
260
UPC::
777987332935
Warranty ENGINE::
3 YEARS
Warranty PUMP::
2 YEARS
Other Details
0
Belt drive drive system keeps the pump RPM low and running cooler to extend its performance and life span.
Commercial Honda engine with excellent weight to power ratio that is designed to be used all day, everyday.
Heavy-duty, two-stage splash lubricated pump with cast iron cylinders, accessible valves, and bearings on both end of the crank shaft to maximize longevity.
Pilot unloader valve is an USA Conrader set to cut in at 95 PSI and cut out at 125 PSI.
Twin 4-gallon tanks are powder coated for added durability and each one has a ball valve tank drain port. Pre-drilled holes in the stabilizing brackets for mounting it into a truck or trailer.
