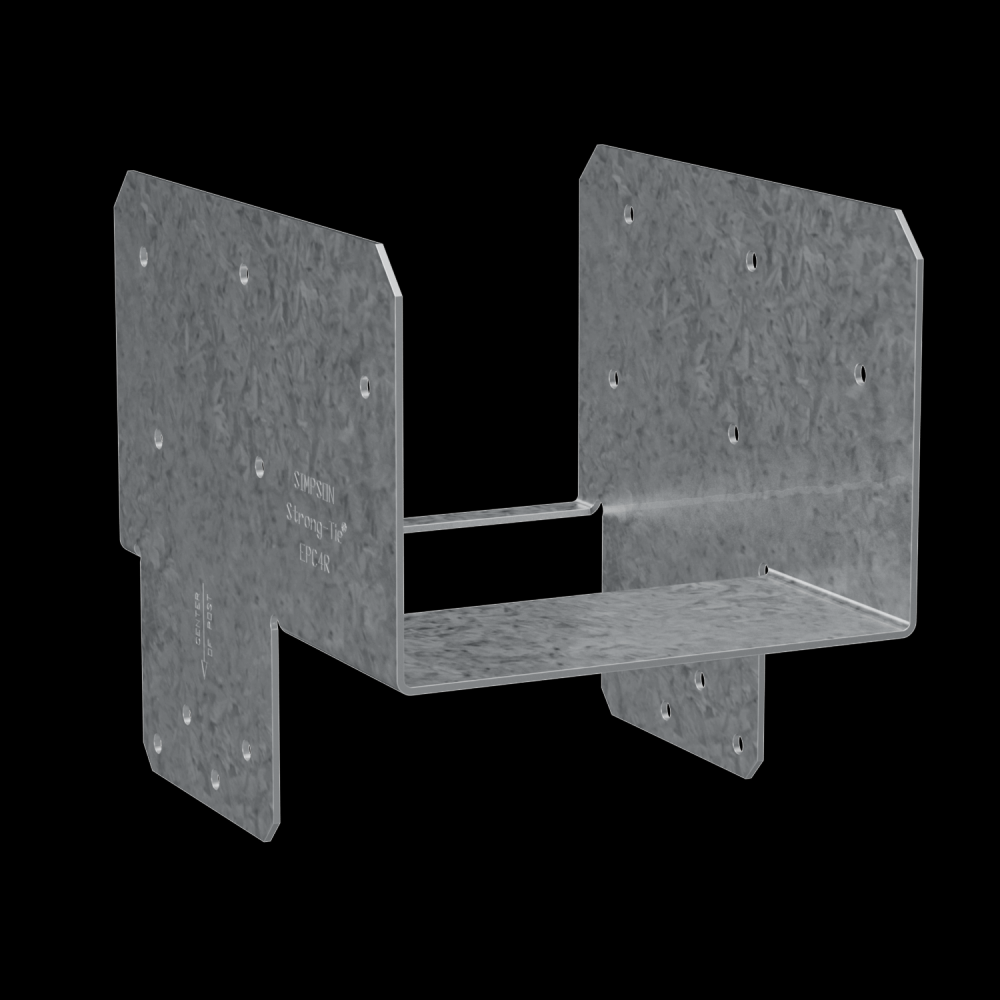

EPCZ™ ZMAX® Galvanized End Post Cap for 4x Rough
Call For Price
- Part Number: EPC4RZ
- UPC: 00707392535836
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
EPC post caps are designed for easy and fast installation for post-to-beam end conditions. They feature post and beam flanges in-line so that one model can accommodate several post sizes. End post cap models are available for use with 4x, 6x and 8x solid sawn and rough lumber post-to-beam connections.
Specifications
Details
Industrial Category:
Fasteners
Industrial Subcategory:
Building Materials
Industrial Subtype:
Brackets
Post Caps
Assembled Depth - Imperial:
5.25 in.
Assembled Height - Imperial:
4.6875 in.
Assembled Width - Imperial:
4.118 in.
Brand Name:
Simpson Strong-Tie®
Coating:
Zinc Plated
Color:
None
Component Material Anchor Body:
Carbon Steel
Component Material Clip:
Carbon Steel ASTM A 568
Component Material Nut:
Carbon Steel ASTM A 563, Grade A
Component Material Washer:
Carbon Steel ASTM F844
Country of Origin:
US
Display Unit/Measure:
EA
ExtraPackaging Type:
Individual Item
GTIN:
00707392535836
Item Length (inches):
5.25
Item Quantity:
1
Limited Warranty:
Limited warranty, available at www.strongtie.com/limited-warranties.
Material:
Carbon Steel
MFG Name:
Simpson Strong-Tie®
Packaging Quantity:
1
Product Class:
Post Cap
Product Weight:
0.85
Quantity:
1
Shipping Weight:
0.85
Thread Length:
3.5
Unit Of Measure:
EA
UPC Code:
707392535836
UPC Number:
707392496427
Other Details
Code listed under IBC/IRC for cracked and uncracked concrete per ICC-ES ESR-3037
Code listed under IBC/IRC for masonry per IAPMO UES ER-240
Dual embossments on each clip segment: enables clip to undercut into the concrete thereby increasing follow-up expansion should a crack occur
Made from zinc-plated carbon steel
Qualified for static and seismic loading conditions (seismic design categories A through F)
Size: 1 in. x 10 in.
Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
Suitable for horizontal, vertical and overhead applications
Tri-segmented clip: each segment adjusts independently, increasing follow-up expansion should the hole increase in size as a result of a crack
